Product Description

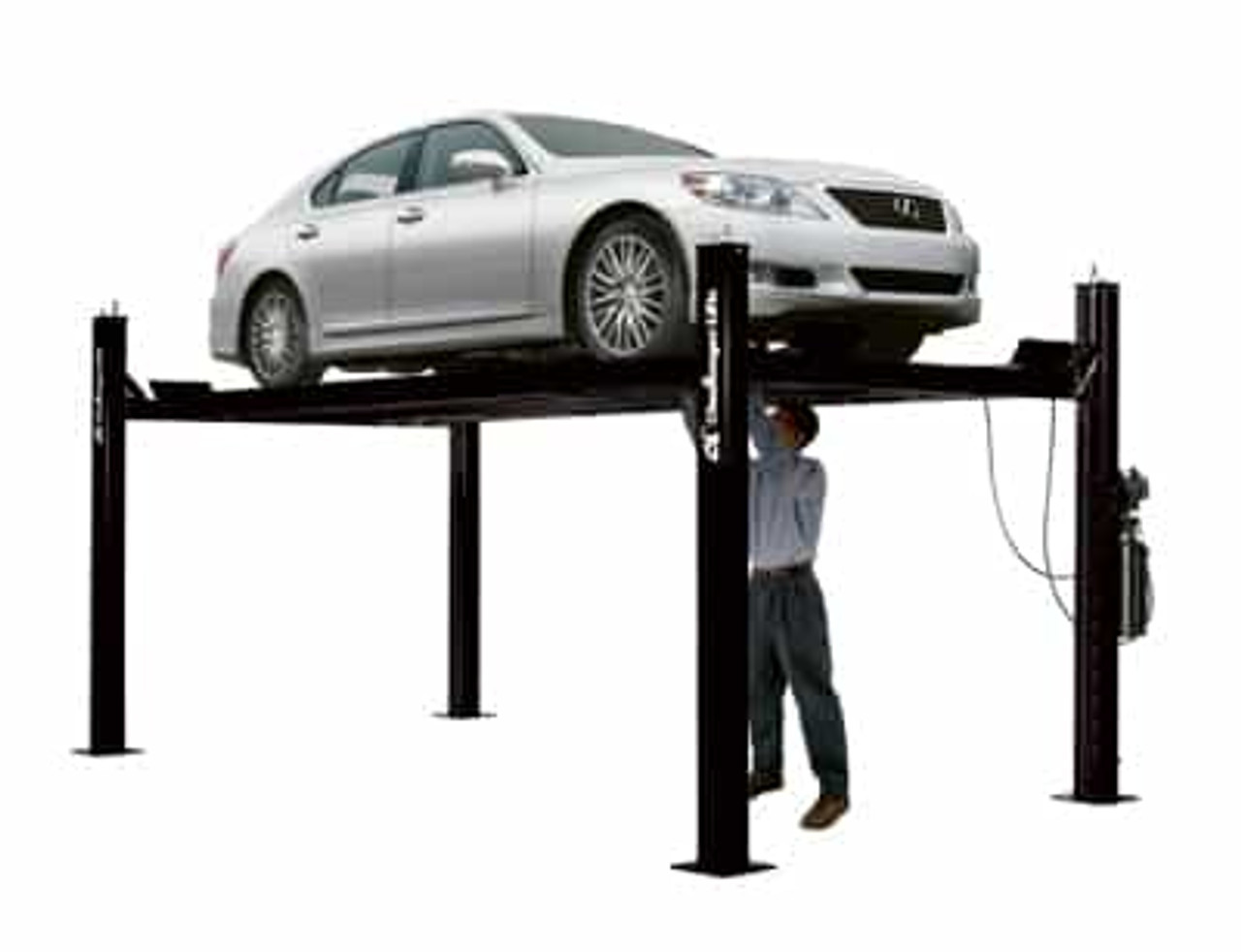

Challenger Lift's CL4P9X 9,000 lb. capacity 4-post lift was designed with versatility in mind. From home enthusiast and commercial storage applications to light duty general service applications, these lifts compliment your service needs and are loaded with real benefits. They are essential for the “do it yourself” home garage, providing the best of both worlds - store a vehicle up top and below with up to 80” of clearance when the lift is fully raised, or use this lift to service your vehicles.
Challenger Lifts’ 9,000 lbs. capacity CL4P9S, CL4P9X and CL4P9W 4-post home car lifts are perfect for light duty commercial service or storage applications. Challenger Lifts 9,000 lbs. 4 post lift and commercial service lift units give you unlimited options for your shop's layout.
Another great feature of the CL4P9 series free standing 4 post lift is its portability. You can choose between bolting it down and leaving it free-standing so you can relocate it anywhere. If convenience is important to you, the free standing 4 post lift is a great option.
With optional rolling jacks, ramp upgrades, oil drain pan, etc., you'll be able to accommodate just about anything that comes in the garage and afford room to grow with its reasonable cost.
Specs on the CL4P9S, CL4P9X & CL4P9W models below:
|
Model
|
CL4P9S | CL4P9X | CL4P9W |
|---|---|---|---|
|
Lift Capacity* |
9,000 lbs. (4082kg)
|
||
|
A Length Overall
|
209-1/2" (5321mm)
|
233-1/2" (5931mm)
|
|
|
B Width Overall
|
112-1/4" (2851mm)
|
127-1/4" (3232mm)
|
|
|
C Inside Columns
(Full Stroke) |
95" (2413mm)
|
110" (2794mm)
|
|
|
D Length of Runways
|
164" (4166mm)
|
188" (4775mm)
|
|
|
E Height of Columns
|
84-1/2" (2146mm)
|
96-1/2" (2451mm)
|
|
|
F Height of Runways
|
7" (178mm)
|
||
|
G Width of Runways
|
20" (508mm)
|
||
|
H Width Between Runways
|
38" (965mm)
|
||
|
I Rise Height
|
73-1/4" (1861mm)
|
85-1/2" (2172mm)
|
|
|
Motor
|
1HP
|
||
|
Voltage 1
|
115v or 220V
|
||
|
Speed of Rise
|
120 seconds (115V)/60 seconds (220V)
|
||
|
Min. Recommended Bay Size
|
11' x 22' (3353mm x 6707mm)
|
||
|
Shiping Weight
|
1850 lbs. (839 kg)
|
1950 lbs. (885 kg)
|
2000 lbs. (907 kg)
|
